chaidr is a base R implementation of the CHAID (Chi-squared Automatic Interaction Detection) and Exhaustive CHAID decision tree algorithms, as specified in the IBM SPSS Statistics Algorithms documentation (Kass 1980; Biggs, de Ville, and Suen 1991). The core fitting and prediction routines depend only on base R – visualization backends and ‘partykit’ integration are optional soft dependencies.
日本語版 README は README.ja.md を参照してください。
Features
- Standard CHAID and Exhaustive CHAID tree growing with multi-way splits.
- Predictors: nominal, ordinal (with a floating category for missing values), and continuous (automatically discretized into quantile bins).
- Responses: nominal (Pearson chi-squared test), ordinal (Goodman row-effects model), and continuous (one-way ANOVA F test).
- Frequency weights via
freq, reproducing results on pre-aggregated data. - Prediction of classes, class probabilities, and node membership with
predict(). - Model inspection: node tables (
chaid_table()), decision rules (chaid_rules()), and predictor importance (chaid_importance()). - Evaluation: gains and lift analysis (
chaid_gains()) and validation on holdout data (chaid_validate()). - Visualization: base graphics
plot(), ‘Graphviz’ DOT export (chaid_dot(),chaid_graphviz()), interactive ‘plotly’ trees (chaid_plotly()), and conversion to ‘partykit’ objects (chaid_as_party()).
When to use CHAID
If predictive accuracy is the only goal, modern gradient-boosting methods such as ‘XGBoost’ and ‘LightGBM’ will usually outperform CHAID. CHAID’s strengths lie elsewhere: interpretability of the results, direct connection to decision making, and statistical justification for every split. Rather than a black box, CHAID builds a single multi-way tree in which each split is backed by a significance test, which is why it remains a strong choice in consulting and marketing practice.
Typical applications:
- Survey analysis, customer-satisfaction (CS) studies, and market research
- Marketing segmentation and target selection
- Domains with strong accountability requirements, where every decision rule must be explainable
- Early-stage exploratory data analysis (EDA)
Installation
Once on CRAN, install the released version with:
install.packages("chaidr")Until then, you can install the development version from GitHub:
# install.packages("remotes")
remotes::install_github("morimotoosamu/chaidr")Quick start
The penguins data set (bundled with R >= 4.5) contains a mix of continuous predictors and missing values, both of which CHAID handles natively.
library(chaidr)
data(penguins)
fit <- chaid(species ~ ., data = penguins,
control = chaid_control(min_parent = 30, min_child = 10))
print(fit)
#> CHAID decision tree (method = "chaid")
#> Response: species (categorical)
#> Valid cases: 344 (data: 344 rows)
#>
#> [1] root: Adelie (44.2%), n=344 | split: flipper_len (adj.p=2.48e-63, chi2=328.5, B=714)
#> [2] flipper_len in {<= 190}: Adelie (84.8%), n=99 | split: bill_len (adj.p=2.92e-16, chi2=78.21, B=28)
#> [3] bill_len in {<= 40.1}: Adelie (100.0%), n=70 *
#> [4] bill_len in {(40.1, 41.8]}: Adelie (92.3%), n=13 *
#> [5] bill_len in {(41.8, 47.3] | > 49.3}: Chinstrap (87.5%), n=16 *
#> [6] flipper_len in {(190, 196]}: Adelie (67.2%), n=67 | split: bill_len (adj.p=1.66e-13, chi2=58.69, B=9)
#> [7] bill_len in {<= 44.4}: Adelie (100.0%), n=43 *
#> [8] bill_len in {> 44.4}: Chinstrap (91.7%), n=24 *
#> [9] flipper_len in {(196, 202]}: Chinstrap (52.6%), n=38 | split: bill_len (adj.p=2.31e-07, chi2=30.78, B=8)
#> [10] bill_len in {<= 45.9}: Adelie (90.0%), n=20 *
#> [11] bill_len in {> 47.3}: Chinstrap (100.0%), n=18 *
#> [12] flipper_len in {(202, 214] | <NA>}: Gentoo (73.8%), n=61 | split: bill_dep (adj.p=9.69e-12, chi2=56.14, B=15)
#> [13] bill_dep in {<= 16.7}: Gentoo (100.0%), n=44 *
#> [14] bill_dep in {> 17.8 | <NA>}: Chinstrap (64.7%), n=17 *
#> [15] flipper_len in {> 214}: Gentoo (100.0%), n=79 *Continuous predictors such as flipper_len are discretized into quantile bins before growing, and statistically similar bins are merged back together, yielding multi-way splits. Groups containing <NA> show where missing values were merged as a floating category. Terminal nodes are marked with *.

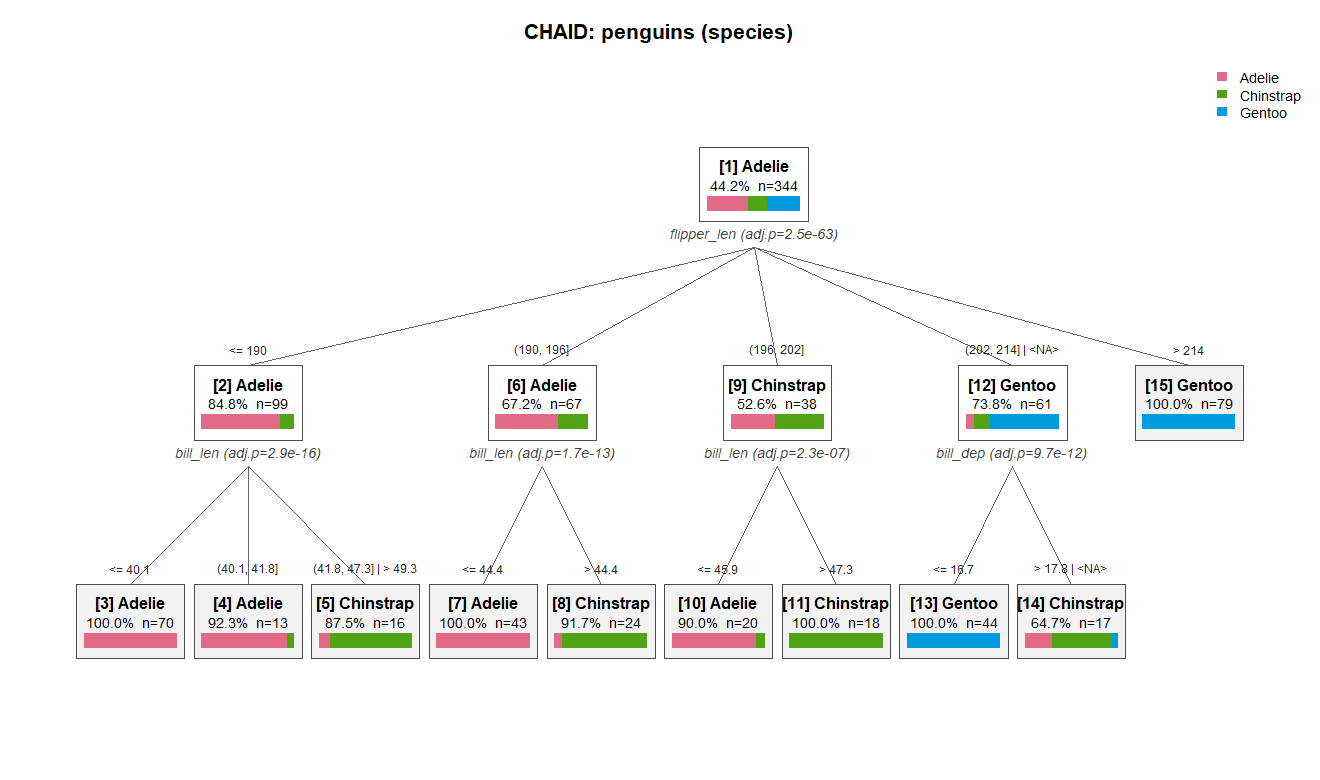

The same tree can be plotted with base graphics (bars show the class distribution within each node):
plot(fit, main = "CHAID: penguins (species)")
Prediction uses the standard S3 predict() interface:
pred <- predict(fit, penguins) # class labels (factor)
mean(pred == penguins$species) # training accuracy
#> [1] 0.9622093
round(predict(fit, head(penguins, 3), type = "prob"), 3)
#> Adelie Chinstrap Gentoo
#> [1,] 1 0 0
#> [2,] 1 0 0
#> [3,] 1 0 0Decision rules for every terminal node:
chaid_rules(fit)
#> node
#> 1 3
#> 2 4
#> 3 5
#> 4 7
#> 5 8
#> 6 10
#> 7 11
#> 8 13
#> 9 14
#> 10 15
#> rule
#> 1 bill_len <= 40.1 and flipper_len <= 190
#> 2 bill_len in (40.1, 41.8] and flipper_len <= 190
#> 3 (bill_len in (41.8, 47.3] or bill_len > 49.3) and flipper_len <= 190
#> 4 bill_len <= 44.4 and flipper_len in (190, 196]
#> 5 bill_len > 44.4 and flipper_len in (190, 196]
#> 6 bill_len <= 45.9 and flipper_len in (196, 202]
#> 7 bill_len > 47.3 and flipper_len in (196, 202]
#> 8 bill_dep <= 16.7 and (flipper_len in (202, 214] or flipper_len is missing)
#> 9 (bill_dep > 17.8 or bill_dep is missing) and (flipper_len in (202, 214] or flipper_len is missing)
#> 10 flipper_len > 214Key functions
| Task | Functions |
|---|---|
| Model fitting |
chaid(), chaid_control()
|
| Prediction | predict() |
| Inspection |
print(), summary(), chaid_table(), chaid_rules(), chaid_importance()
|
| Evaluation |
chaid_gains(), chaid_validate()
|
| Visualization |
plot(), chaid_dot(), chaid_graphviz(), chaid_plotly()
|
| partykit integration | chaid_as_party() |
Documentation
-
vignette("chaidr")– a compact introduction (in English). -
vignette("chaidr-ja")– a detailed tutorial covering the algorithm, all option settings, evaluation, and visualization (in Japanese).
References
- Kass, G. V. (1980). An exploratory technique for investigating large quantities of categorical data. Applied Statistics, 29(2), 119–127.
- Biggs, D., de Ville, B., & Suen, E. (1991). A method of choosing multiway partitions for classification and decision trees. Journal of Applied Statistics, 18(1), 49–62.
- IBM Corp. IBM SPSS Statistics Algorithms – “CHAID and Exhaustive CHAID Algorithms”.
