Plot a CHAID tree with base graphics

Draws the tree top-down using base graphics only. For categorical responses each node shows the predicted class, its share, the node size and optionally a horizontal bar of the class distribution. Edges are labelled with the (possibly merged) predictor categories.

Usage

# S3 method for class 'chaid'
plot(
  x,
  cex = 0.8,
  label_len = 22,
  palette = NULL,
  show_bar = TRUE,
  main = NULL,
  ...
)

Arguments

x

A fitted "chaid" object returned by chaid().

cex

Base character expansion for node and edge labels.

label_len

Maximum number of characters for edge (split group) labels; longer labels are truncated.

palette

Vector of class colours for categorical responses. Defaults to grDevices::hcl.colors(n, "Dark 3").

show_bar

Logical. Draw a class distribution bar inside each node (categorical responses only).

main

Plot title. Defaults to the response name and method.

...

Ignored.

Value

The fitted object, invisibly.

See also

chaid(), chaid_dot() for publication-quality Graphviz output, chaid_plotly() for an interactive version.

Examples

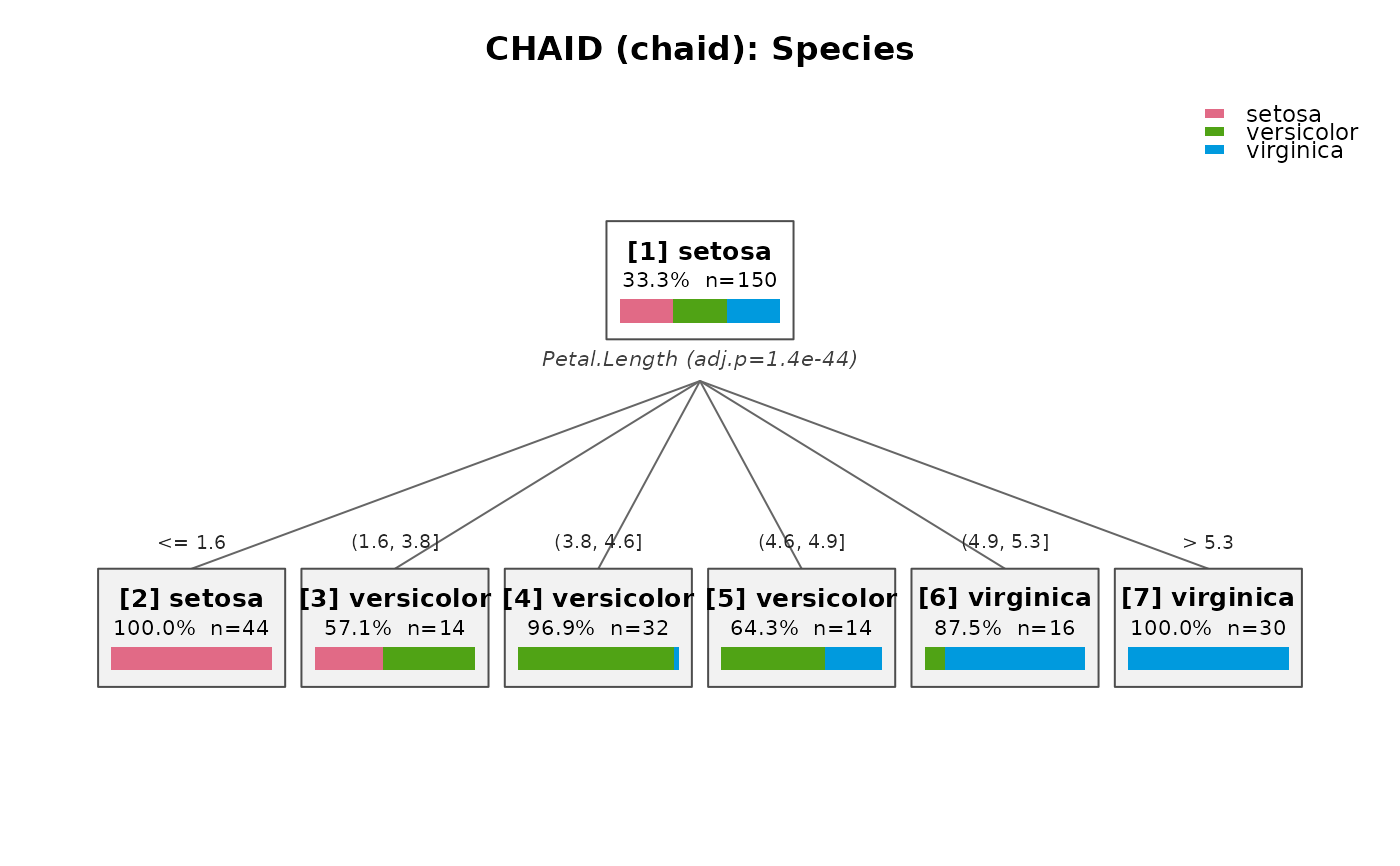

fit <- chaid(Species ~ ., data = iris,
             control = chaid_control(min_parent = 30, min_child = 10))
plot(fit)
